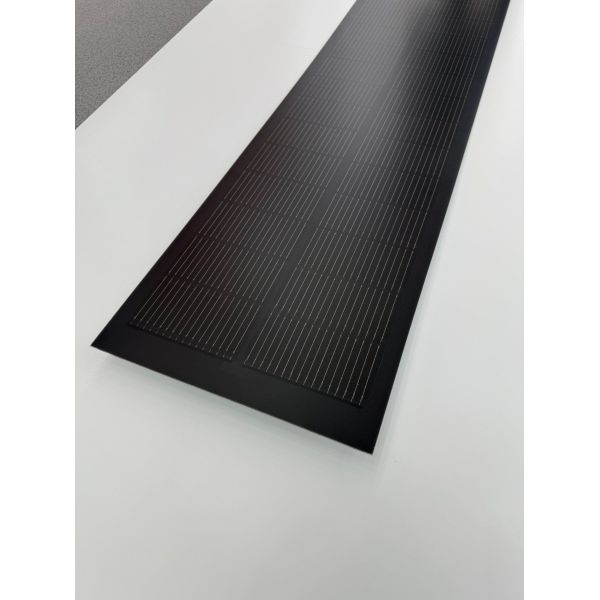

Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V

Model NO. : XSFM-120-T

Application : Photovoltaic Venues, Greenhouse, Sun-shading Device, Curtain Wall, Roof

Max. Power : 120W

Optimum Operation Voltage : 9.59V

Optimum Operating Current : 12.5A

Open- Circuit Voltage : 10.99V

Short-Circuit Voltage : 13.26A

Module Operating Temperature Range : -40-85

Max. System Voltage : DC 1000/ 1500V (IEC)

Max. Fuse Current : 25A

Power Tolerance Range : 0-5W

Rated Operating Temperature of The Cell : 44 Degree

Max. Powewr Temperature Coefficient : -0.26 %

Open-Circuit Voltage Temperature Coeffic : -0.24%

Short-Circuit Voltage Temperature Coeffi : 0.04%

Transport Package : Wooden Box

Specification : 1545*425*3mm

Trademark : x-solar

Origin : China Jiangyin

HS Code : 8541420000

Production Capacity : 50000 Pieces Per Year

Package Size : 165.00cm * 45.00cm * 0.30cm

Package Gross Weight : 2.170kg

Contact Now

120W Soft Solar Panel For Roof Material
Product Description
Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
Product Parameters
Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
Product Advantage

Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99VMax. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
Product Application

Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99VMax. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
Basic information
Basic information Data
cell type TOPCon cell 182*91 mm
cell arrangement 32 pcs(2*16)
module size 1545*425*3 mm
Module weight 2.17KG
Junction box Enclosure rating IP68
Output cable 4mm2, 500mm cable net length. cable length can be customized
Connector registration MC4 compatibility
Frame N/A
Front static load (snow pressure) 2400Pa
Rear static load (wind pressure) N/A

Packing Details
transportation Platform Lorry Platform Lorry Container
size 13m 17.5 40 degree
pallet 22 28 40
piece/pallet 45 45 42
Total pieces 990 1260 1680
Company Profile

Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V Beijing X-Solar Energy Co., Ltd. was found in 2020, and headquartered in Beijing. It's a science and technology innovative energy enterprises with the main business of future cell R&D, flexible photovoltaic modules, building photovoltaic module production, high-end equipment manufacturing, production line delivery, and AI-CITY wisdom energy management services.

In July 2023, the company's first demonstration factory, Jiangsu X-Solar Green-building Technology Co., Ltd., was established in Jiangyin CNBM Jetion Industrial Park. Meanwhile, Jiangsu YuanTeng FengSheng Intelligent Manufacturing Technology Co., Ltd., a wholly-owned equipment company of the company, delivered the world's first "three-in-one" automatic production line for Jiangyin base. The production line can be compatible with the production of three categories: X-Solar Light shadow series (flexible PV modules), X-Solar Light rhyme series (building PVtile modules), X-Solar Light Curtain series (building PV wall modules), and customized products. X-Solar PV series products have the advantages of integrating architectural aesthetics, complying with design specifications and creating energy value, which have been widely recognized and praised by customers in domestic and overseas.

In 2024, the company has added two regional centers in Shanghai and Guangzhou of China, and set up the Hong Kong X-Solar Future Energy Research Institute, and overseas sales companies in Australia, Italy, Germany, Saudi Arabia and Argentina. The company has launched a global layout to provide sustainable energy products and services to many countries, and has contributed to the "carbon neutrality and carbon peak".
Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
Production Process

Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99VMax. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
Exhibition Display

Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99VMax. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V
FAQ

Max. Power 120W Solar Panel with Junction Box Underneath Open-Circuit Voltage 10.99V

1.Q:How about the power generation efficiency, durability, and ease of installation of lightweight and flexible photovoltaic modules?
A:Our soft modules adopt the latest technology, with high power conversion rate and durability. The unique flexible design makes installation more flexible and convenient, and can adapt to various complex terrain and curved surface installation requirements. Compared with conventional crystalline silicon modules, our soft modules only need to be directly attached to the surface with building structural adhesive, and do not need to be installed with brackets, saving installation raw materials and labor costs.

2.Q:How do the prices of photovoltaic flexible modules compare with those of conventional crystalline silicon modules?
A:We understand your concern about price. Although the initial investment may be slightly higher than that of conventional crystalline silicon modules, considering the high power generation efficiency and long life of photovoltaic flexible modules, its long-term benefits will far exceed those of conventional crystalline silicon modules. In addition, our products also have lower installation and maintenance costs and longer service life, bringing you a higher return on investment.

3. Q:Whether PV flexible modules are suitable for our specific installation environment or project requirements.
A:Photovoltaic flexible modules have a wide range of application scenarios, including but not limited to roofs, carports, boat roofs, tents, awnings, etc. Its unique flexible design makes installation no longer limited by the limitations of traditional rigid materials, and can easily adapt to various complex environments and project requirements. Our professional technical team will provide customized solutions based on your specific needs.

4 Q:How about the after-sales service and quality guarantee policy?
A:Our soft module products have a 12-year warranty and a 25-year power warranty. Our flat and curved tiles have a 15-year warranty and a 30-year power warranty. We attach great importance to after-sales service and customer satisfaction. We provide comprehensive after-sales service support, including product installation guidance, regular maintenance inspections, and fast-response repair services to ensure that you have no worries after purchase.

5 Q:What are the differences and advantages of your products over other companies' products?
A:In the field of photovoltaic modules, we have always maintained a leading position in technology and market. Our products are superior to similar products in terms of performance, durability, and ease of installation. We are fully aware of the fierce market competition, so we continue to invest in research and development and innovation to provide better products and services to meet customer needs.

6 Q:Policy support and subsidies: Different regions have different policy support and subsidy levels for photovoltaic products, and customers may have questions about this.
A:Depending on the policies of different regions, you may enjoy different amounts of subsidies and tax benefits. We are willing to consult relevant information for you.

7 Q:What kind of project cases do you have?
A:Our products have a wide range of applications, such as: building BIPV, mobile energy, agricultural and animal husbandry greenhouses, etc. For details, please see our product case collection.

8 Q:What are the precautions for installing your products?
A:The following matters need to be noted:
I. Please be sure to read the installation manual of our products in detail before installation
II. Prepare all necessary preparation tools and auxiliary materials in advance
III. Check whether the installation environment, electrical connections, etc. meet the installation requirements
V. Perform step-by-step installation and safe operation according to the manual
VI. Perform debugging and inspection after installation is completed
VII. Keep relevant certificates: purchase certificate, installation manual and any relevant warranty information

9 Q:What is the additional load after installation?
A:Under normal circumstances, the surface load that our products can withstand is 2400pa. We understand that the specific needs of each project may be different, so we also provide customized products and services to meet your unique load and performance requirements.
